· Equipped with Wi-Fi image transmission and built-in video recording/photo capture functions.
· 0.49-inch Ultra HD OLED display with 1440×1080 resolution.
· Alloy shell with IP67 protection rating, designed to withstand harsh environments.
· Shock resistance up to 800g/ms and impact resistance against 6000J energy.
· The seamless algorithm ensures continuous, stutter-free imaging.
· RAV (Rapid Action View) function ensures no critical moments are missed.
· 0.49-inch Ultra HD OLED display with 1440×1080 resolution.
· Alloy shell with IP67 protection rating, designed to withstand harsh environments.
· Shock resistance up to 800g/ms and impact resistance against 6000J energy.
· The seamless algorithm ensures continuous, stutter-free imaging.
· RAV (Rapid Action View) function ensures no critical moments are missed.

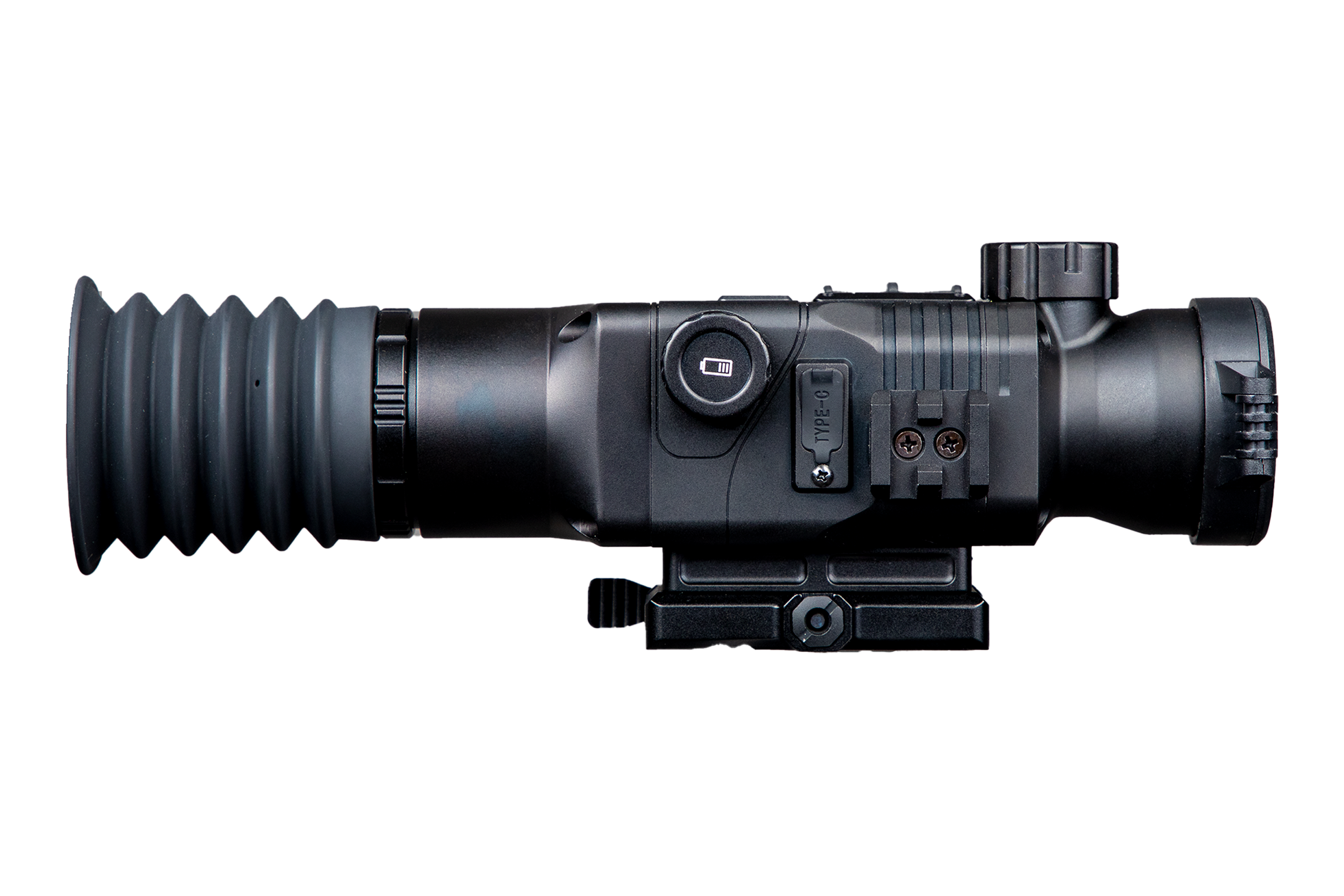

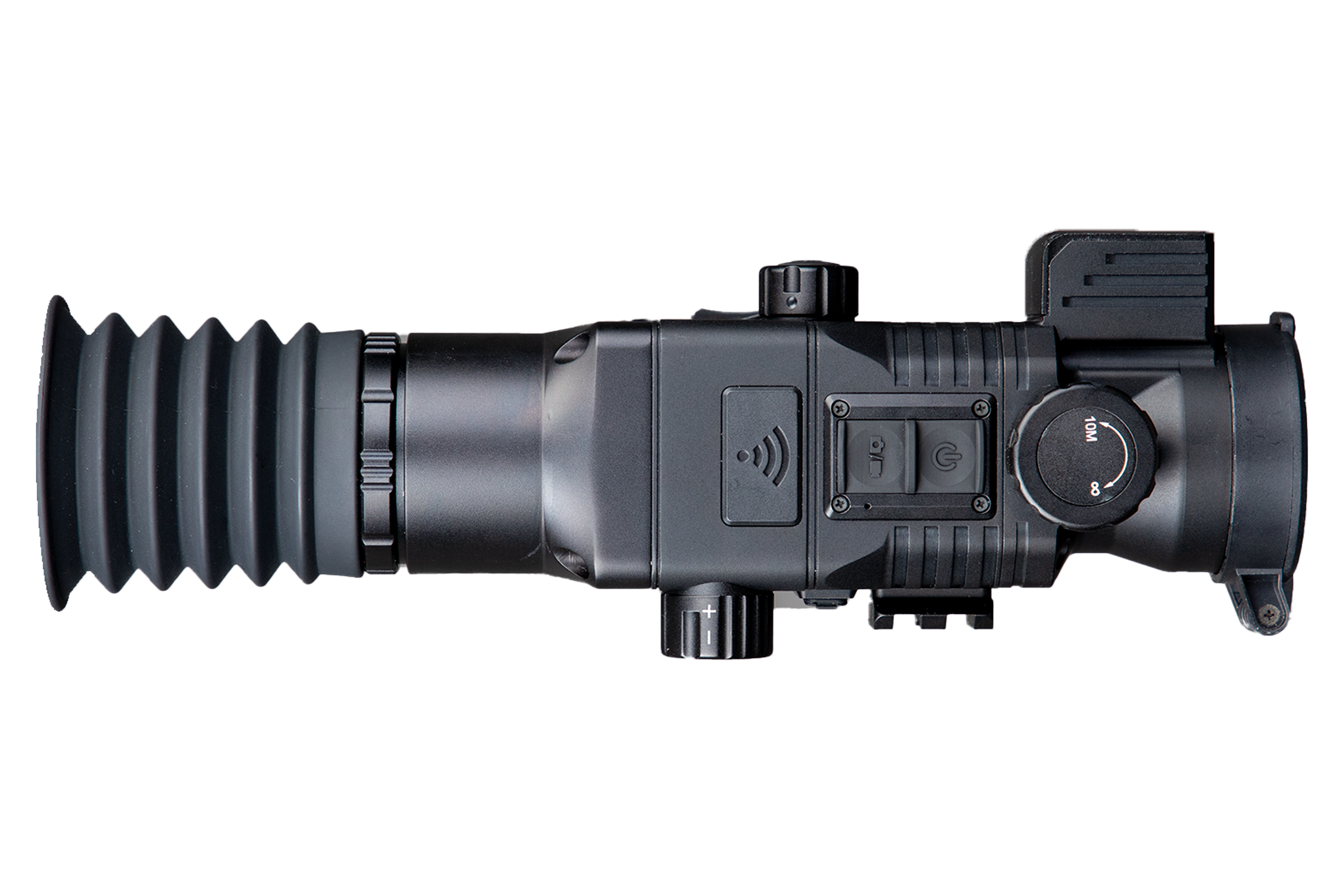

Thermal Scope Model: JHRS6B
|
Sensor |
Type |
Uncooled Vox FPA Micro bolometer |
|
|
Pixel Array |
256*192 / 384*288 / 640*512 |
|
|
NETD |
≤20mk(25 °C, F#=1.0) |
|
Image |
Focal Length |
19mm / 25mm / 35mm |
|
|
Min Focus |
5m |
|
|
Frame Rate |
50Hz |
|
|
Focus method |
Manual |
|
Display |
Display |
0.49 inch Color OLED 1440*1080 Resolution |
|
|
Exit Pupil Diameter |
6mm |
|
|
Exit Pupil distance |
55mm |
|
|
Eyepieces Magnification |
11.2X |
|
|
Basic Magnification |
2.72 ~ 4.09X |
|
|
Diopter |
-5D~+5D Adjustable |
|
|
Dimension |
190×72×85mm～208×102×83mm (Without Eyecup ) |
|
|
Weight |
≤575g or ≤860g |
|
Detection distance |
Human（1.8×0.5）m |
650m / 1400m / 1900m |
|
Recognition Distance |
Human （1.8×0.5）m |
350m / 700m / 900m |
