· Built-in Photos/videos recording functions and also support WIFI transmission
· 0.49 inch OLED 1440*1080 resolution display
· Alloy housing ,protection IP67,meet requirement in harsh environment
· Shock Resistance Up to 800g/ms ,and Impact resistance up to 6000J

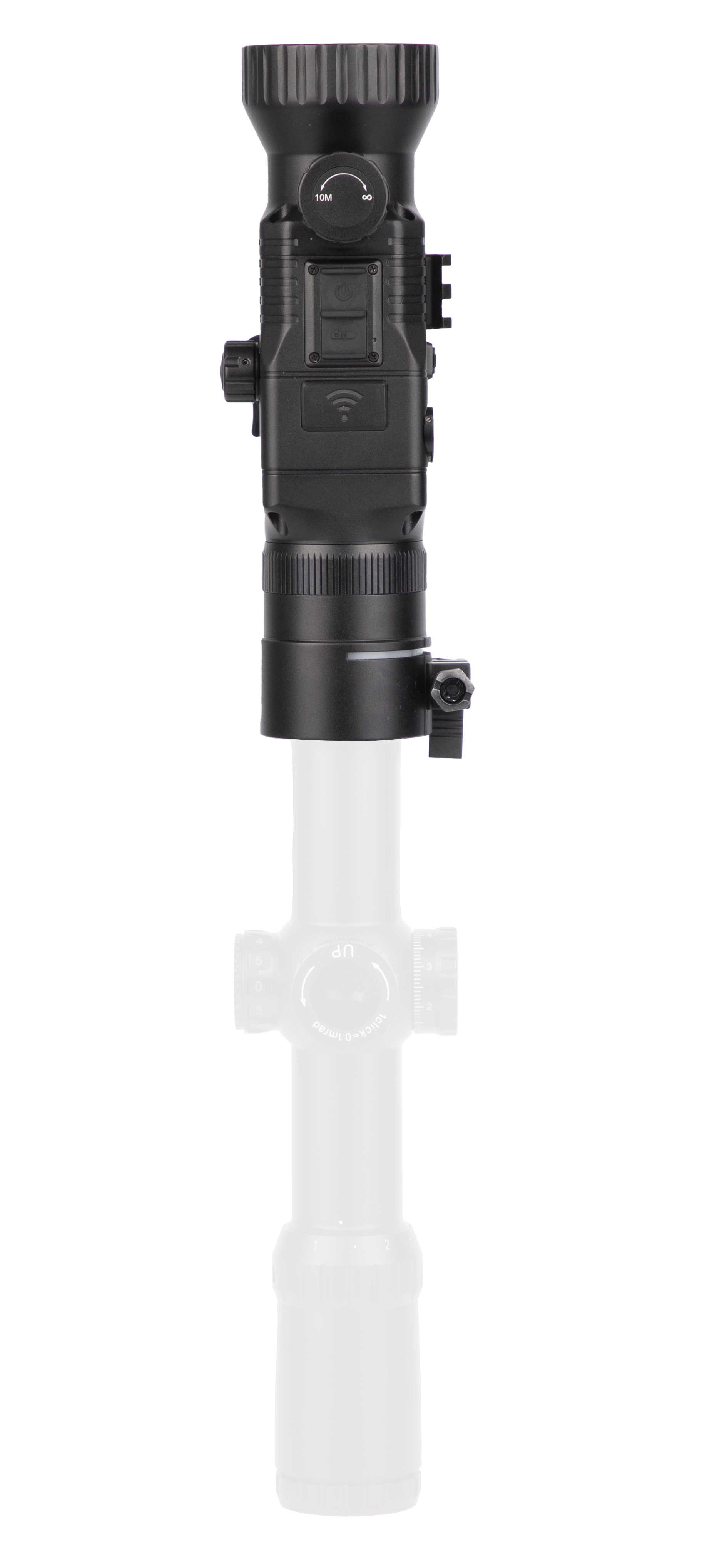

· Clip-On mode or standalone mode

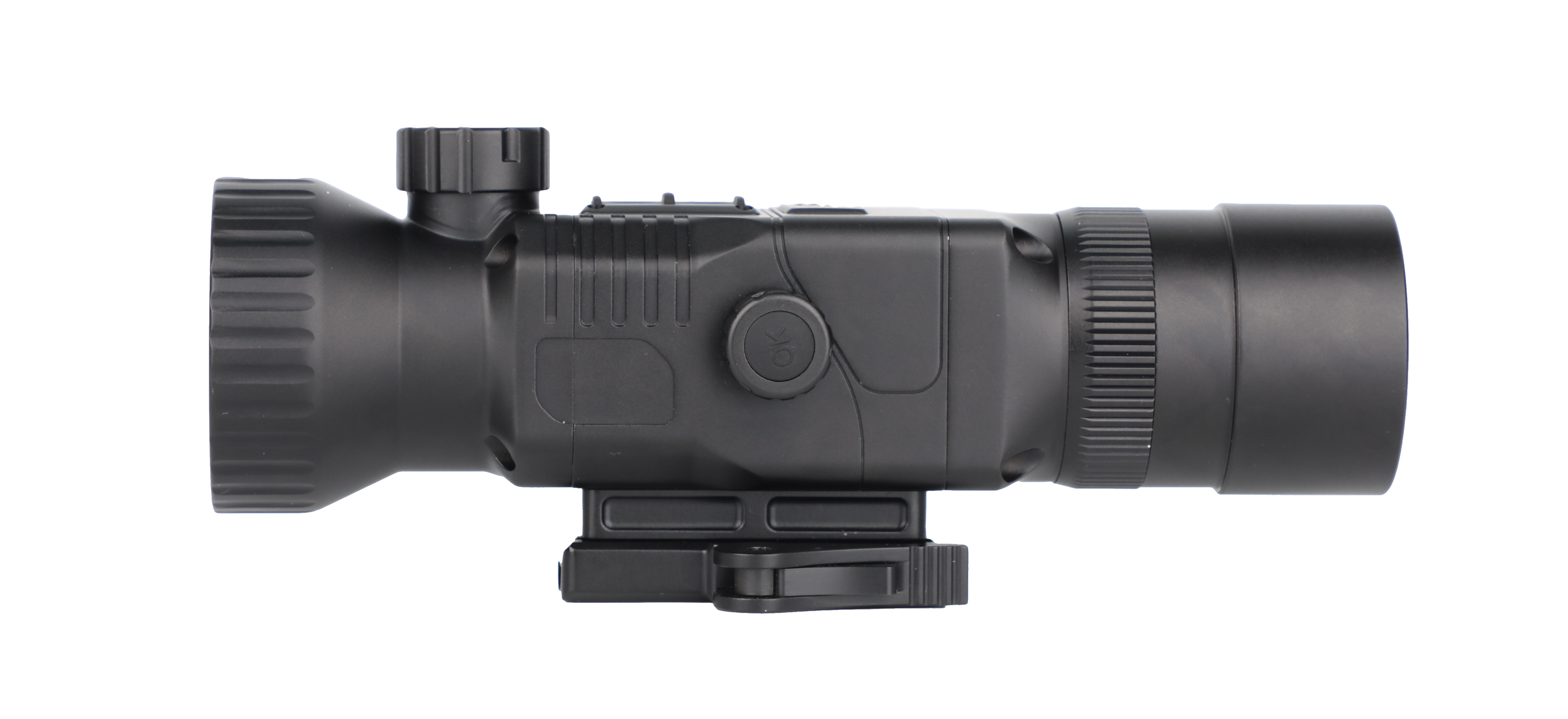

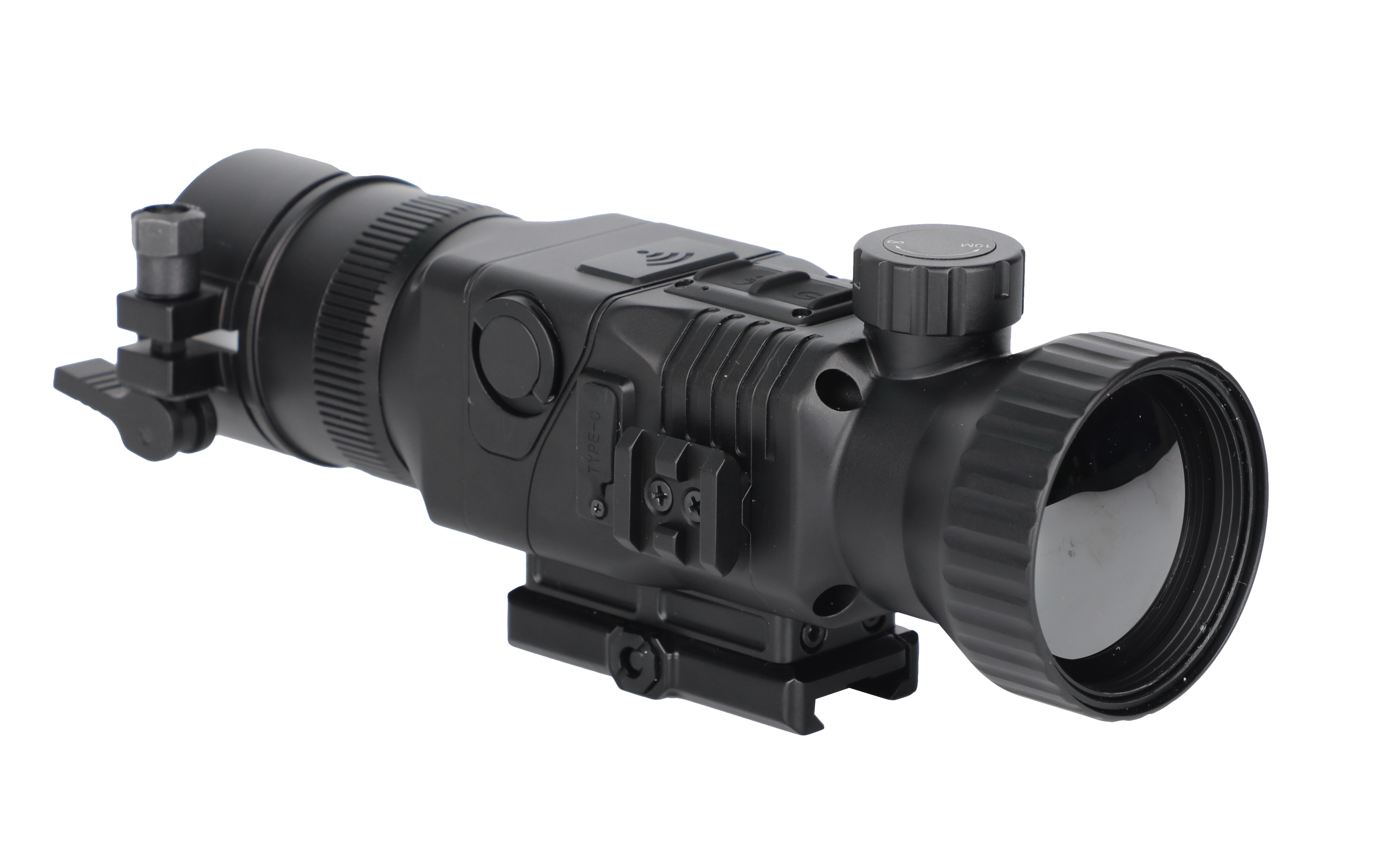

Clip-on Thermal Scope Model: JHRS6
|
Category |
Parameter |
RS635-384 |
RS650-640 |
RS650-640L |
|
Detector Performance |
Detector Type |
Uncooled VOx FPA |
Uncooled VOx FPA |
Uncooled VOx FPA |
|
|
Pixel Array |
384×288 |
640×512 |
640×512 |
|
|
Pixel Pitch |
12μm |
12μm |
12μm |
|
|
NETD |
≤20mK (25°C, F#=1.0) |
≤20mK (25°C, F#=1.0) |
≤20mK (25°C, F#=1.0) |
|
Imaging Performance |
Focal Length |
35mm |
50mm |
50mm |
|
|
FOV (±5%) |
7.5°×5.7° |
8.8°×7.0° |
8.8°×7.0° |
|
|
Min. Focus Distance |
2m |
5m |
5m |
|
|
Lens Aperture |
F1.0 |
F1.0 |
F1.0 |
|
|
Frame Rate |
50Hz |
50Hz |
50Hz |
|
|
Focus Method |
Manual |
Manual |
Manual |
|
Display |
Display |
0.49" Color OLED (1440×1080) |
0.49" Color OLED (1440×1080) |
0.49" Color OLED (1440×1080) |
|
|
Exit Pupil Diameter (Front) |
10mm |
10mm |
10mm |
|
|
Exit Pupil Diameter (Standard) |
6mm |
6mm |
6mm |
|
|
Eye Relief (Front) |
46mm |
40mm |
40mm |
|
|
Eye Relief (Standard) |
50mm |
50mm |
50mm |
|
|
Eyepiece Magnification |
3× |
3× |
3× |
|
|
Base Magnification (Front) |
×1 |
×1 |
×1 |
|
|
Base Magnification (Standard) |
×3.25 |
×2.72 |
×2.72 |
|
|
Diopter Adjustment |
-5D to +5D |
-5D to +5D |
-5D to +5D |
|
Dimensions & Weight |
Dimensions (Front Mode) |
187.5×70×83.4mm |
187.5×70×83.4mm |
196×83×83mm |
|
|
Dimensions (Standard Mode) |
220×70×83.4mm |
220×70×83.4mm |
210×83×83mm |
|
|
Weight |
≤515g |
≤575g |
≤685g |
|
Detection Range |
Human (1.8×0.5m) |
1600m |
2300m |
|
|
|
Vehicle (2.3×2.3m) |
2200m |
3200m |
|
|
Recognition Range |
Human (1.8×0.5m) |
800m |
1150m |
|
|
|
Vehicle (2.3×2.3m) |
1100m |
1600m |
Vehicle (2.3×2.3m) |
