· Shadow Series
· Magnification Value: 5-30
· Objective Lens Diameter: 56mm
· Focal Plane: First focal plane
· 34mm Main Body Tube
· A6061-T6 Aircraft Grade Aluminium
· Fully multicoated ED glass
· Waterproof, Fogproof, Shockproof & Nitrogen Purged
· Magnification Value: 5-30
· Objective Lens Diameter: 56mm
· Focal Plane: First focal plane
· 34mm Main Body Tube
· A6061-T6 Aircraft Grade Aluminium
· Fully multicoated ED glass
· Waterproof, Fogproof, Shockproof & Nitrogen Purged
5-30X56 ED FFP Rifle Scope Model: JTS-1259
|
JTS-1259 |
|
|
5-30x56 FFP |
|
Tube Diameter |
|
|
34 mm |
|
Field of View-Low |
|
|
24.1 ft @100 yds |
|
Field of View-High |
|
|
4.03 ft @100 yds |
|
Field of View-Low |
|
|
8.05m@100 m |
|
Field of View-High |
|
|
1.34m@10 m |
|
Windage Adjustment |
|
|
±30 MOA |
|
Elevation Adjustment |
|
|
±44 MOA |
|
Eye Relief-Low |
|
|
94 mm(3.7 in.) |
|
Eye Relief-High |
|
|
94 mm(3.7 in.) |
|
Focal Plane |
|
|
First Focal Plane |
|
Reticle Type |
|
|
Etched Glass Reticle |
|

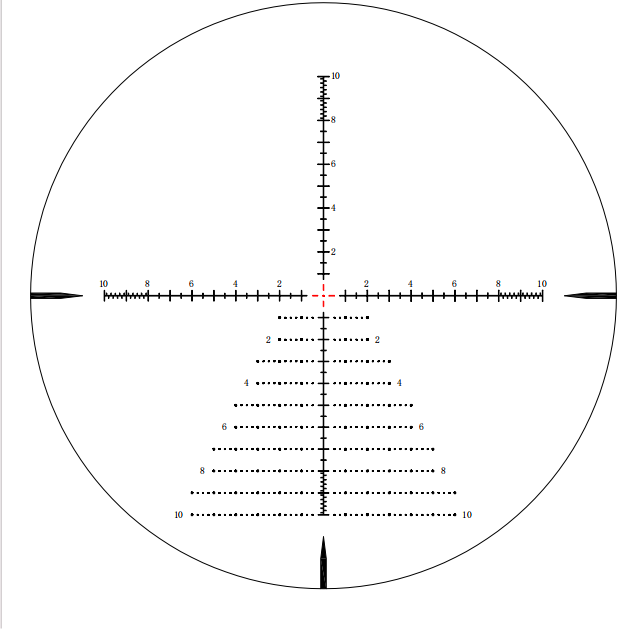

Reticle Shape |
|
|
JMOA2 |
|
Objective Lens |
|
|
56 mm |
|
Parallax Adjustment |
|
|
15 yds- ∞ |
|
Click Value |
|
|
0.25 MOA |
|
Turret Type |
|
|
High adjustment turrets |
|
Focus Type |
|
|
Side Focus |
|
Coating |
|
|
Fully Multi-Coated |
|
Waterproof /Fogproof |
|
|
Yes |
|
Length |
|
|
375 mm/14.76 in. |
|
Weight |
|
|
1070g/37.74 oz |
